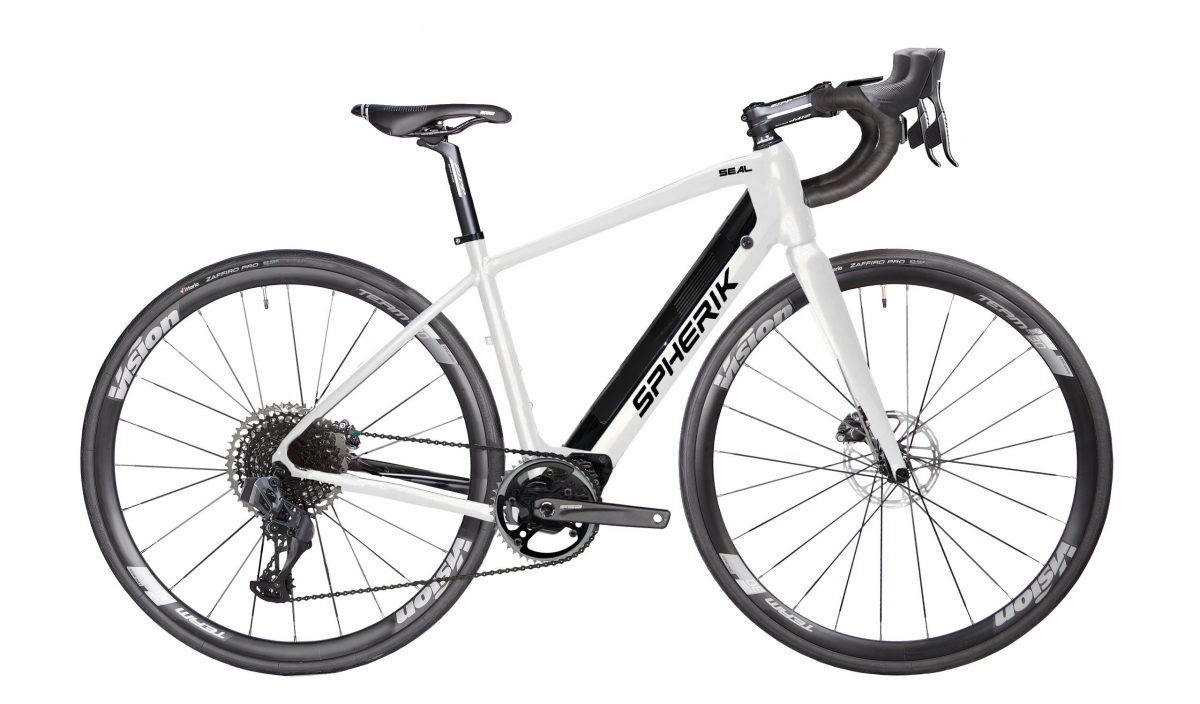

SEAL Road Electric Bike
The SEAL road bike’s motor and battery are integrated into the aluminum frame to keep the center of gravity low and centered for a natural, predictable ride. It will provide more range and more fun for the recreational cyclist who wants to extend his rides without burning out.
6 699.99 $4 689.99 $
Frame
Aluminium 6061 T
Fork
Carbon/Aluminium
Wheel
Vision 30 700C Front Rear Wheels W/QR, W/Tape (Spherik carbon wheels in option)
Front Tire
Vittoria Zaffiro Pro – 60 TPI – 700x28c Foldable Black
Rear Tire
Vittoria Zaffiro Pro – 60 TPI – 700x28c Foldable Black
Front Derailleur
Rival eTap
Rear Derailleur
Rival eTap MAX 10-36CS
Cassette
CS XG 1270 D1 10-36
Crankset
FSA e-Road 42T
Chain
CN Rival D1 12S 114LI
Brakes
Rival eTap Hydraulic Flat Mount
Rotors
160 mm Rounded
Grips
Chrono Cycle
Saddle
Italia X-Model ou Lady Flow
Seatpost
FSA
Stem
FSA Omega
Motor
Bafang M800 55nm 43volt, top speed: 32 km/h
Battery
Bafang M800 215wh
Headset
Type AHEAD integrated, 1-1/8 Top 1.5 Down
Clamp
Spherik Integrated
Tubes
Vittoria
Front Brake
Rival eTap Hydraulic Flat Mount
Rear Brake
Rival eTap Hydraulic Flat Mount
Computer
Bafang M800
| Size | XS | S | M | L |
|---|---|---|---|---|
| ST (mm) | 430 | 480 | 520 | 560 |
| TTH (mm) | 539 | 557.3 | 574.2 | 591.3 |
| CS (RC) (mm) | 430 | 430 | 430 | 430 |
| BBD (mm) | 75 | 75 | 75 | 75 |
| HT (mm) | 165 | 165 | 185 | 210 |
| ASA (degrés) | 75° | 74° | 73.5° | 73.5° |
| HTA (HA) | 74.5° | 73° | 73.5° | 73.5° |
| WB (mm) | 1005.35 | 1016.19 | 1022.28 | 1039.38 |
| FL (mm) | 397.5 | 397.5 | 397.5 | 397.5 |
| FC (mm) | 586.8 | 597.5 | 603.5 | 620.5 |
| STACK | 581.6 | 600.7 | 621.7 | 647.5 |
| REACH | 380 | 385 | 390 | 400 |
| SIZE | XS | S | L | M |
|---|---|---|---|---|
| Cyclist Height | 158cm – 165cm ( ( 5’2″-5’4″ ) | 165cm – 173cm ( 5’4″ – 5’8″ ) | 173cm – 181cm ( 5’9″ – 5’11” ) | 181cm -186cm ( 5’11” – 6’1″ ) |
