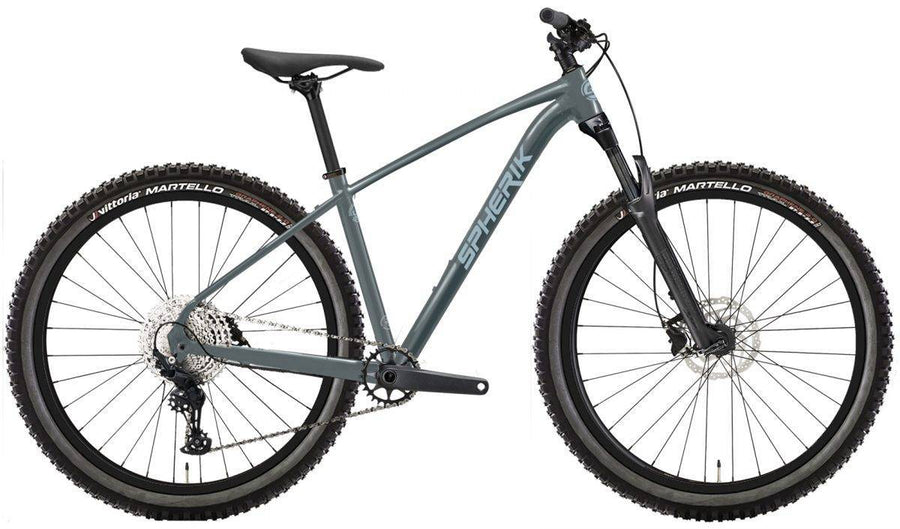

SMH4 Mountain Bike
Best Sellers
SMH4 Mountain Bike
$1,149.99 CAD
$1,849.99 CAD
L’alternative idéale pour le cycliste débutant ou intermédiaire qui privilégie les pistes fluides et qui recherche un vélo de trail semi-rigide fiable et facile à piloter. Pour un positionnement parfait, il est équipé de pneus larges de 27,5 po pour le format XS et de 29 po pour les autres tailles.
Options
Tailles disponibles
Reminder : all online orders will be assembled and must be picked up at a nearby retailer
SMH4 Mountain Bike
$1,149.99 CAD
$1,849.99 CAD
SMH4 Mountain Bike
Options
Tailles disponibles
| Frame | Aluminium | Rotors | Shimano SM-RT10 L 160mm |
|---|---|---|---|
| Fork | RockShox Judy TK 130mm | Grips | Spherik Gel |
| Wheel | Spherik Double Wall | Saddle | Velo VL-4212 |
| Front Tire | Vittoria Martello 27.5 x 2.6 | Seatpost | Spherik 30.9mm |
| Rear Tire | Vittoria Martello 27.5 x 2.6 | Stem | Spherik 31.8mm |
| Rear Derailleur | Shimano Deore 11S | Handlebar | Spherik 31.8mm |
| Cassette | Shimano Deore 11S | Weight | 32,01 Lb / 14,52 Kg |
| Crankset | Spherik 28D | Headset | FSA |
| Chain | Shimano CN-HG54 | Clamp | Spherik 35mm |
| Brakes | Shimano BL-MT200 | Tubes | Vittoria |
| Levers | Shimano Deore 11S | Bottom Bracket | Spherik |
Spherik reserves the right to modify components without notice and depending on availability.
Geometry
| Size | XS (27.5) | S (29) | M (29) | L (29) | XL (29) |
|---|---|---|---|---|---|
| ST (mm) | 310 | 335 | 355 | 410 | 460 |
| TTH (mm) | 536.4 | 581 | 611 | 642.4 | 672.2 |
| CS (RC) (mm) | 432 | 432 | 432 | 432 | 432 |
| BBD (mm) | 45 | 60 | 60 | 60 | 55 |
| HT (mm) | 95 | 95 | 100 | 110 | 120 |
| ASA (degrés) | 75° | 74.5° | 74.5° | 74.5° | 74.5° |
| HTA (HA) | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| WB (mm) | 1085.6 | 1123.63 | 1155.63 | 1189.62 | 1223.6 |
| FL (mm) | 494 | 514 | 514 | 514 | 514 |
| FC (mm) | 653.7 | 691.6 | 723.6 | 757.6 | 791.6 |
| Reach (mm) | 380 | 410 | 440 | 470 | 500 |
| Stack (mm) | 569 | 602.4 | 607 | 616.1 | 620.3 |
Sizing Chart
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Cyclist Height | 143–153 cm 4′8″–5′0″ |
153–163 cm 5′0″–5′4″ |
163–173 cm 5′4″–5′8″ |
173–183 cm 5′8″–6′0″ |
183–193 cm 6′0″–6′4″ |
